Balcony Solar Mounting System

Trust Engineering Balcony Solar Mounting System is designed for residential photovoltaic applications, providing a simple, safe, and efficient solution for installing solar panels on balconies and small outdoor spaces.

Made from high-quality aluminum alloy and stainless steel components, the system features a lightweight structure, excellent corrosion resistance, and easy installation. It is ideal for apartment balconies, residential buildings, and small-scale solar energy projects.

⚒AL6005-T5 Aluminum 🔒No Drilling Required 🕐1-Hour Install 🏠Rent-Friendly

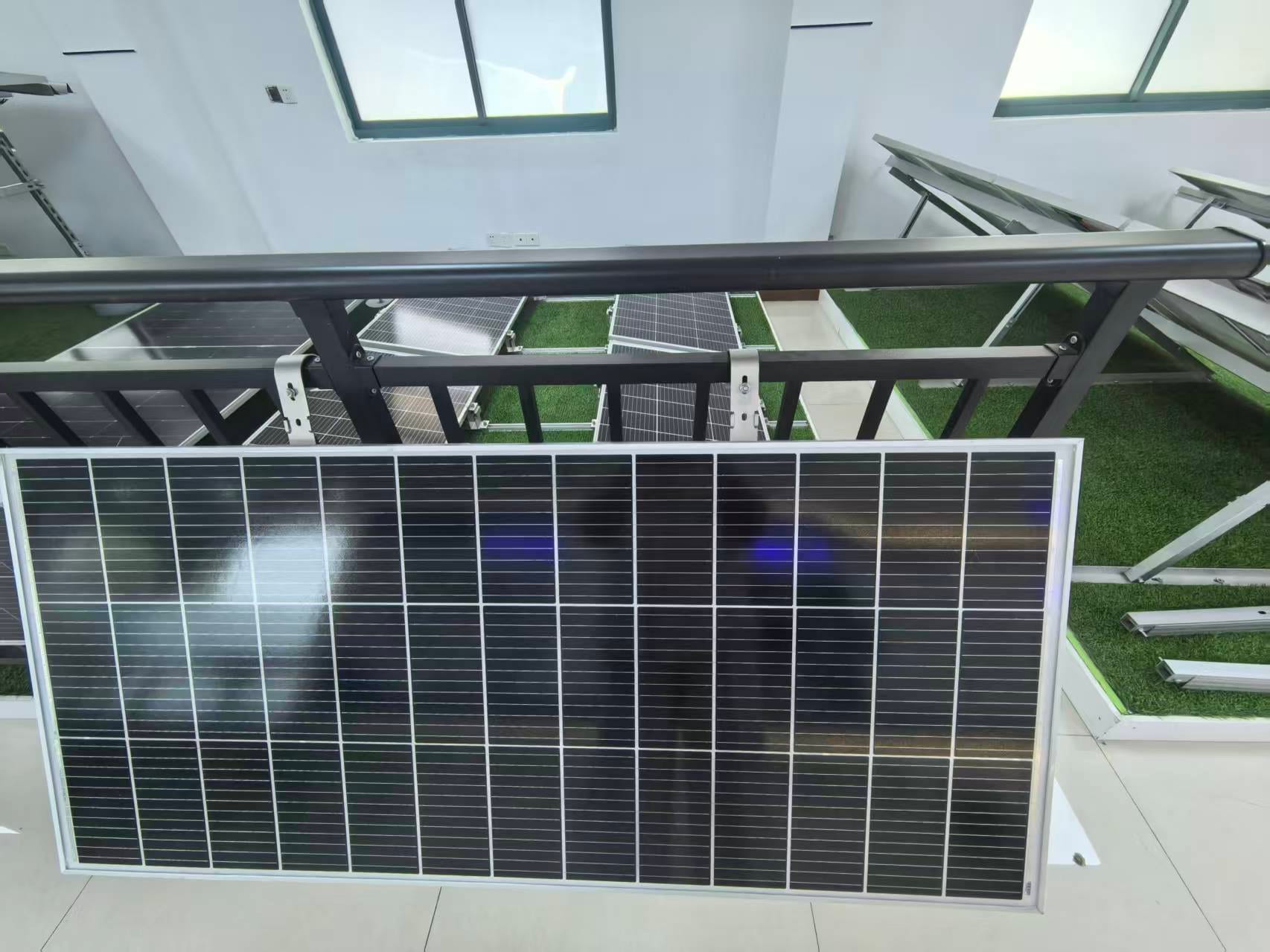

Balcony solar panel mounted on showroom railing display

Over-the-rail balcony solar installation on modern apartment

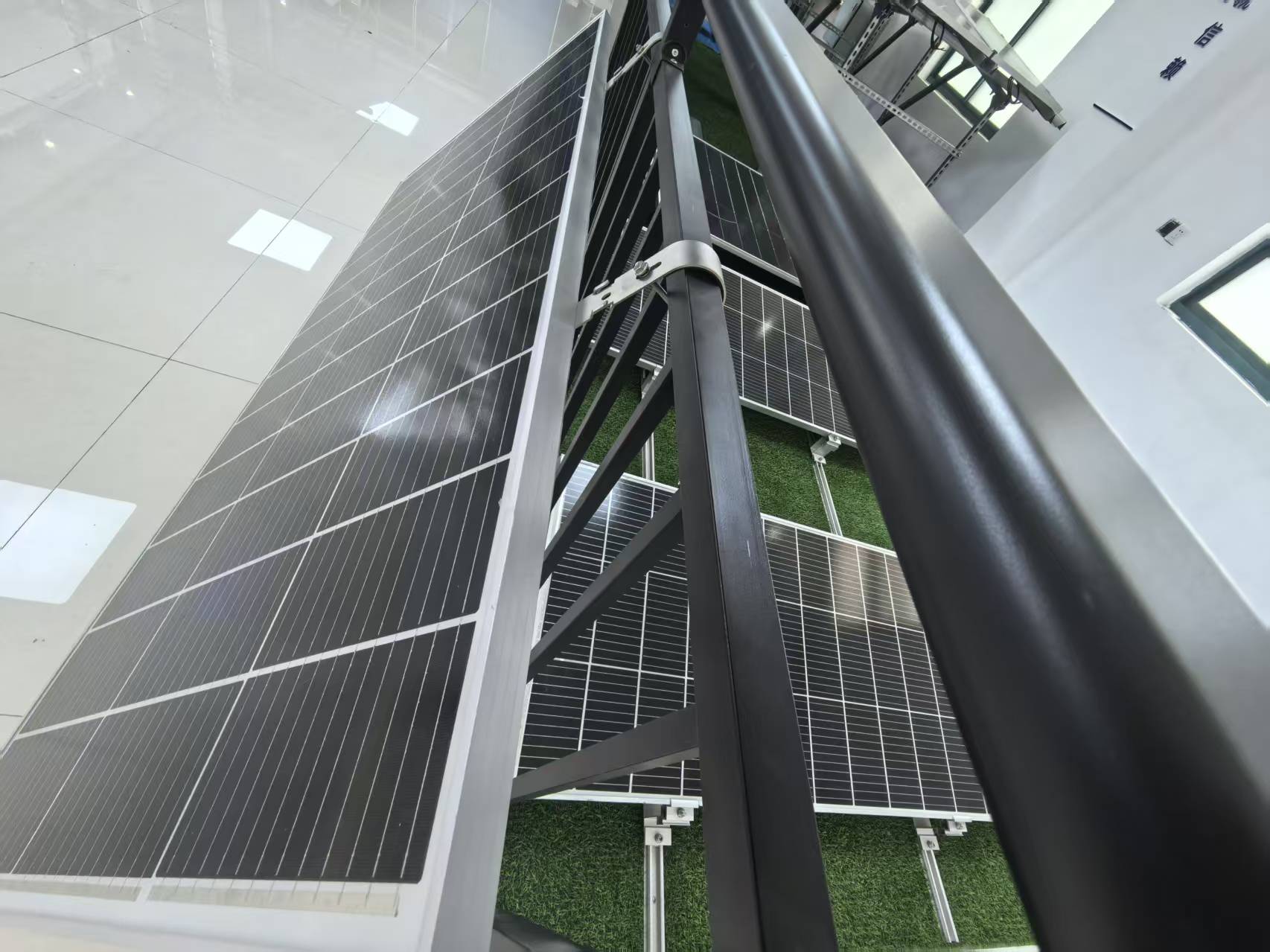

Close-up angle of solar panel on black balcony railing bracket

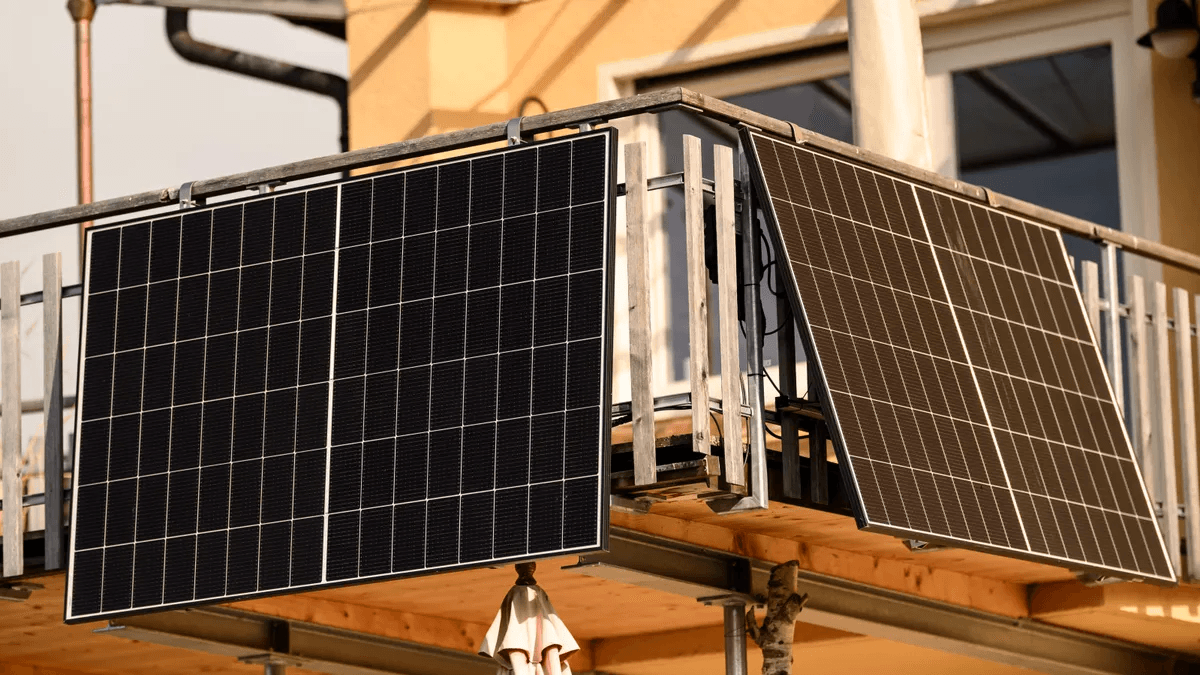

Wooden deck balcony with dual-panel solar mounting system

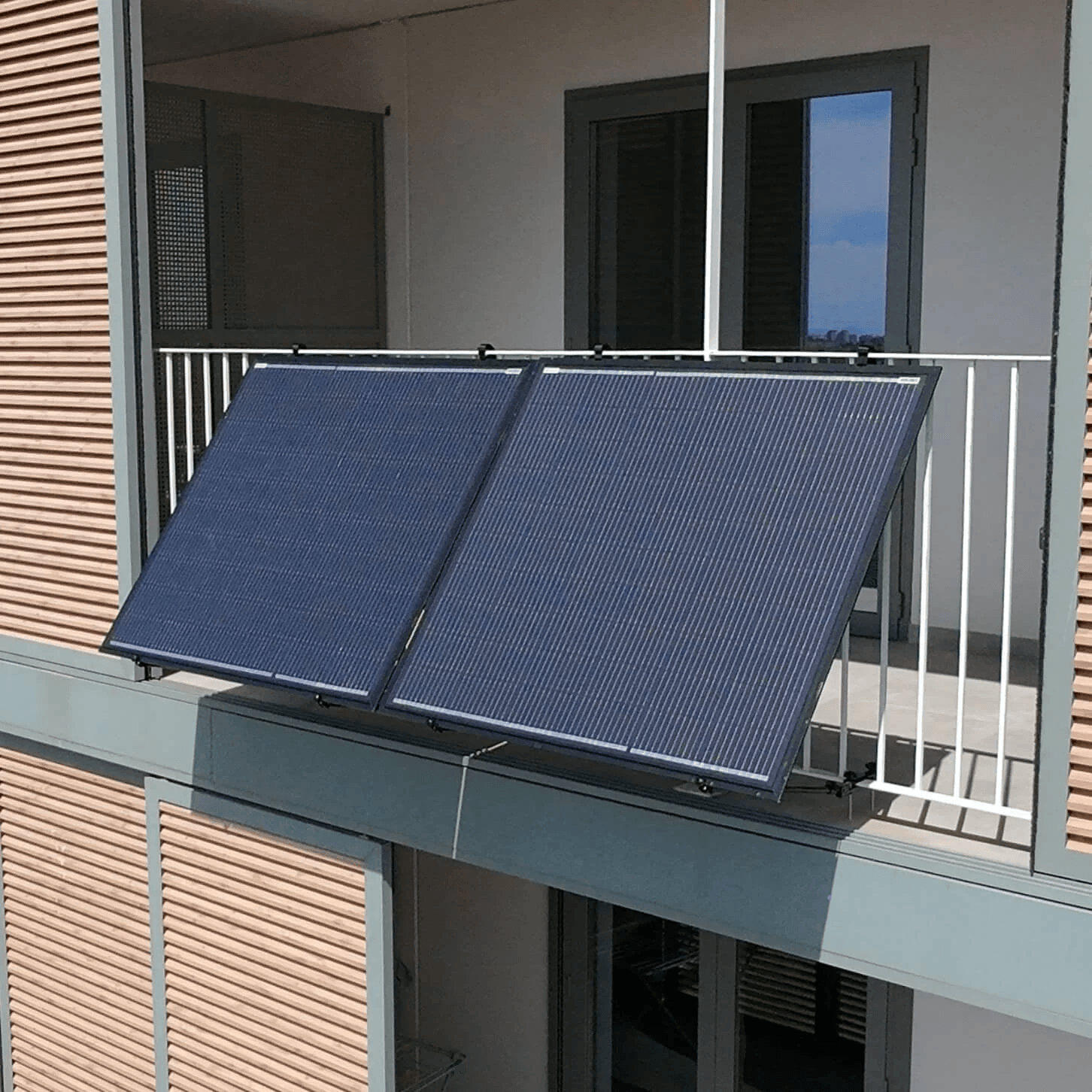

Apartment balcony solar panel array on white railing

Technical Specifications

Detailed parameters for the Balcony Solar Mounting System — basic information and mechanical performance.

Basic Information

Product Name

Balcony Solar Mounting System

Application

Apartment Balcony / Terrace / Patio Railing

Installation Type

Railing Clamp / Over-The-Rail

Suitable Modules

Framed Solar Panels (1–4 pcs typical)

Module Orientation

Portrait / Landscape

Tilt Angle

15° – 35° (Adjustable)

Material

AL6005-T5 Aluminum Alloy

Fasteners

SUS304 Stainless Steel

Surface Treatment

Anodized Aluminum (10-15μm)

Color

Silver / Black / Customized

Warranty

10 Years

Service Life

25+ Years

Mechanical Parameters

Wind Load

Up to 36 m/s (Balcony sheltered)

Snow Load

Up to 0.8 kN/m²

Railing Compatibility

Round Ø20–60mm / Square 20–60mm

Max Panel Size

Up to 1800 x 1100 mm per panel

Corrosion

Anodized Alu + SUS304

Temperature

–40°C to +85°C

GLOBAL PROJECTS, TRUSTED PERFORMANCE

Balcony Solar Mounting System | Trusted Performance on Balconies Worldwide

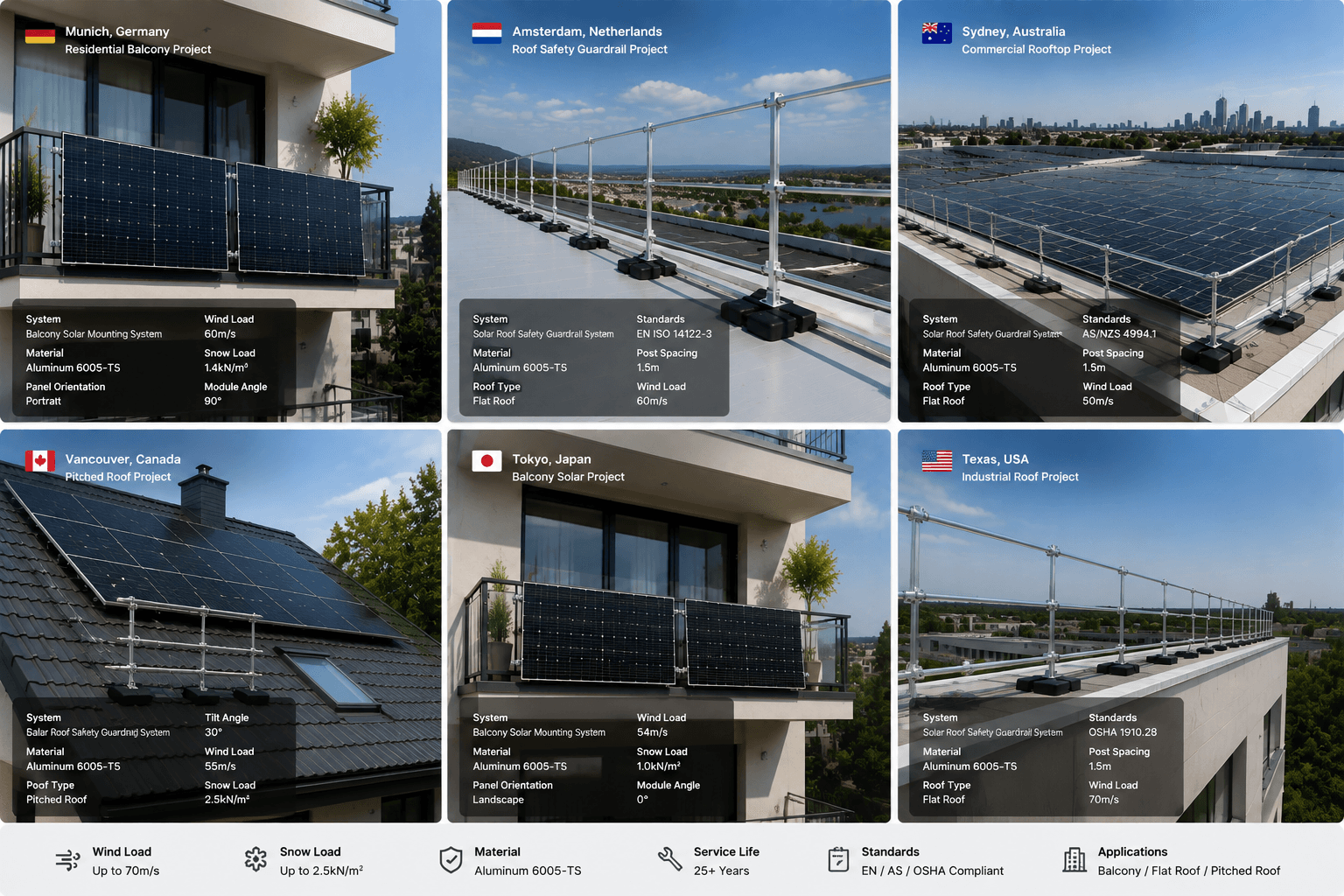

Global Projects - Balcony Solar Mounting System Trusted Performance Worldwide

Reliable Manufacturing. Proven Quality. Global Trust.

Over 10 years of expertise in solar mounting systems, delivering certified quality and professional service to 50+ countries.

Factory Production

Engineering Design

Quality Inspection

Global Projects

Frequently Asked Questions

What balcony railing types are compatible?▼

Our system fits round railings (Ø20–60 mm) and square profiles (20–60 mm), with over-the-rail and clamp-on designs covering most apartment and residential balconies.

Do I need to drill holes?▼

No. The clamp-on and over-the-rail designs require no drilling into walls, floors, or railings — ideal for rented apartments and condos.

How many solar panels can I install?▼

A typical setup holds 1–4 framed panels (up to 1800 x 1100 mm each), in portrait or landscape orientation.

What tilt angle is adjustable?▼

The tilt is adjustable from 15° to 35°, letting you maximize energy yield based on your balcony orientation and local latitude.

Do you provide OEM service?▼

Yes. OEM and ODM services are available, including customized color (silver / black), logo, packaging, and engineering design.

Balcony Solar Mounting System

Technical Specifications

GLOBAL PROJECTS, TRUSTED PERFORMANCE

Reliable Manufacturing. Proven Quality. Global Trust.

Factory Production

Engineering Design

Quality Inspection

Global Projects

Frequently Asked Questions

Start Generating Solar Energy from Your Balcony Today
