BIPV Mounting System

Our BIPV mounting system replaces traditional roofing materials—metal sheets, tiles, or membranes—with an integrated solar structure that generates clean energy while providing 100% waterproof protection. Designed for industrial roofs, commercial buildings, and solar carports. No separate roofing. No double installation costs. Just one system that does both.

🏢Architectural Integration 💧100% Waterproof ⚡Power + Roofing in One 🌟CE / TUV Certified

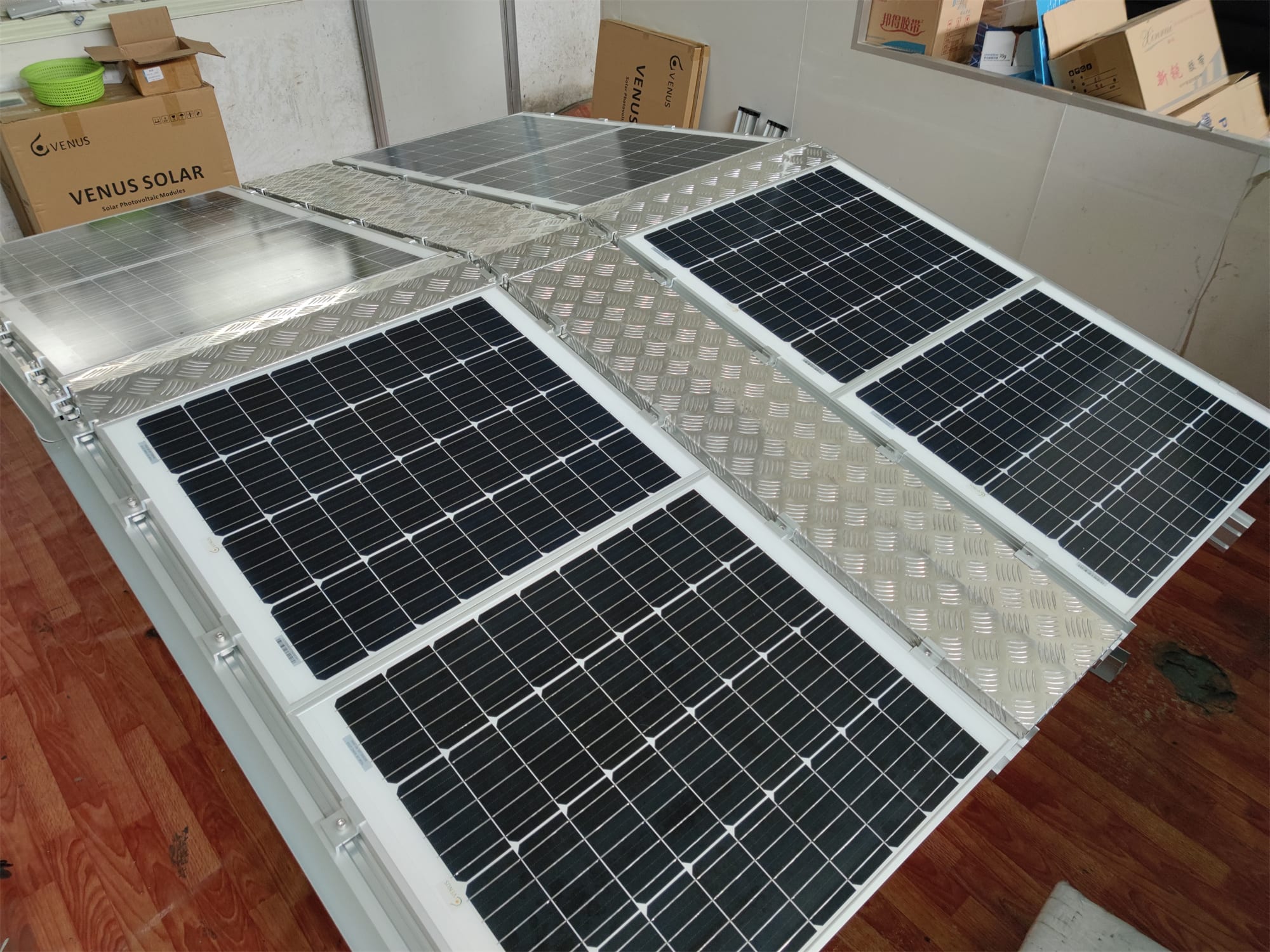

BIPV building-integrated photovoltaic roof system

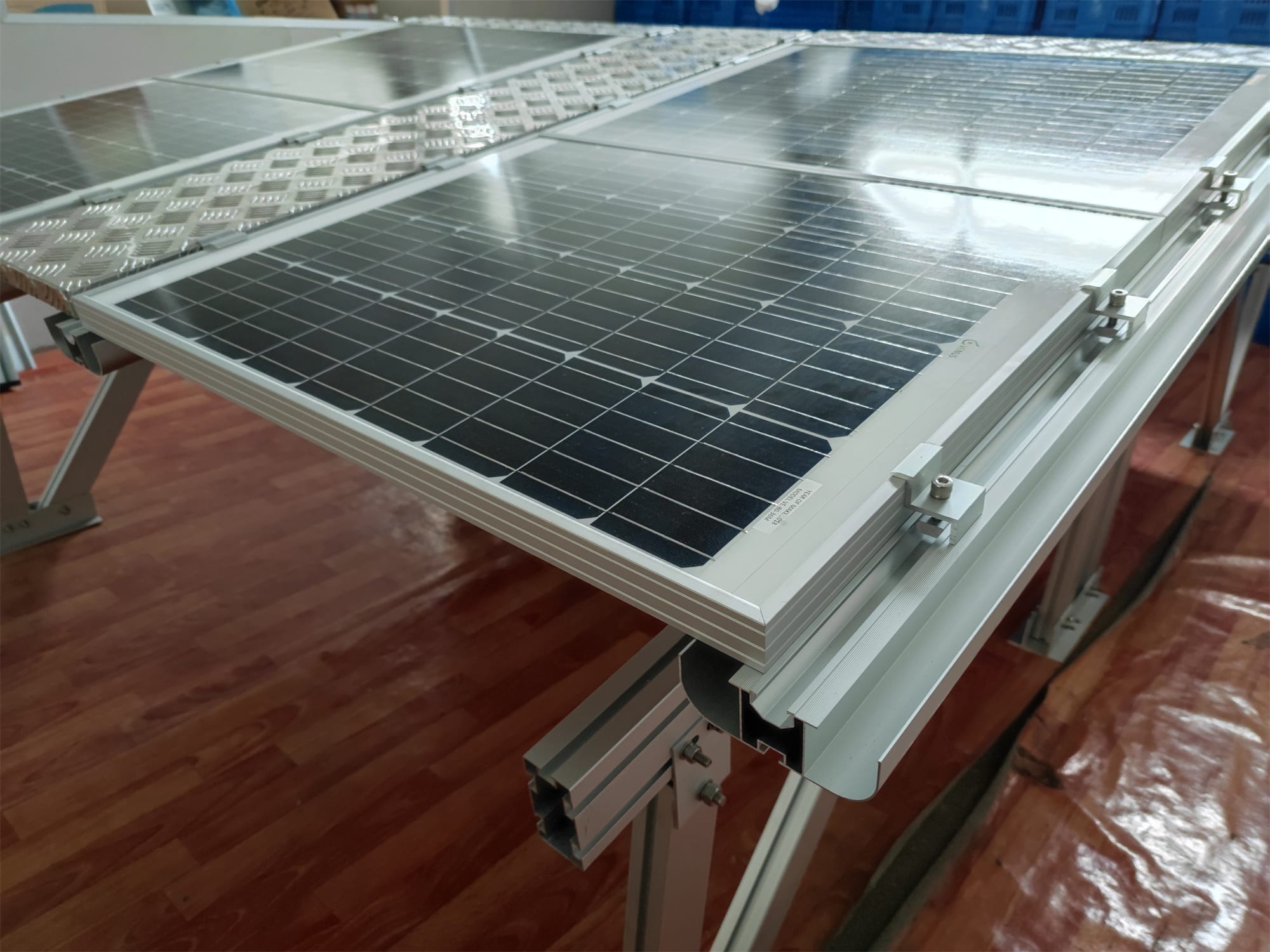

BIPV waterproof roof detail with aluminum framing

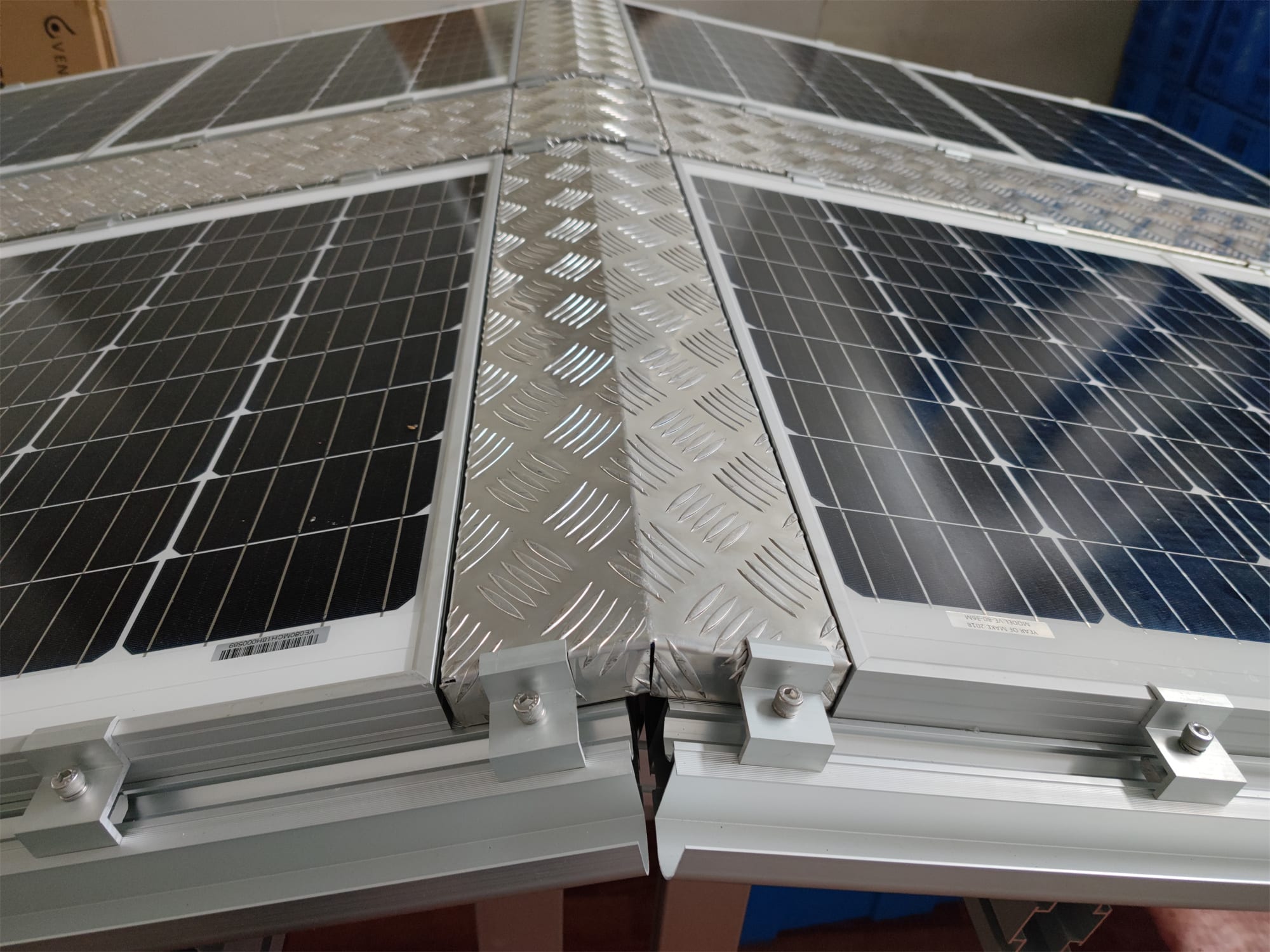

BIPV walkway and panel joint installation

Technical Specifications

Detailed parameters for the BIPV Mounting System — building-integrated photovoltaic solutions for roofs, facades, and skylights.

Basic Information

Product Name

BIPV Mounting System

Application

Roof / Facade / Skylight / Curtain Wall

Integration Type

Facade / Skylight / Curtain Wall / Roof Tile

Panel Type

Mono / Thin-Film / Semi-Transparent

Transparency

10% – 50% light transmission

Custom Dimensions

Up to 2.4m × 1.2m

Waterproof Rating

100% waterproof design

Color

Customized per project

Warranty

10 Years

Service Life

25+ Years

Certifications & Performance

Product Certification

IEC 61215 / IEC 61730

Building Code

EN 13830 (Curtain Wall)

Fire Rating

Class A (IEC 61730-2)

CE Marking

EN 1090 (Structural Steel)

Wind Load

Up to 60 m/s (project-specific)

Snow Load

Up to 1.5 – 2.4 kN/m²

Temperature

–40°C to +85°C

GLOBAL PROJECTS, TRUSTED PERFORMANCE

BIPV Mounting System | Trusted Performance on Rooftops and Facades Worldwide

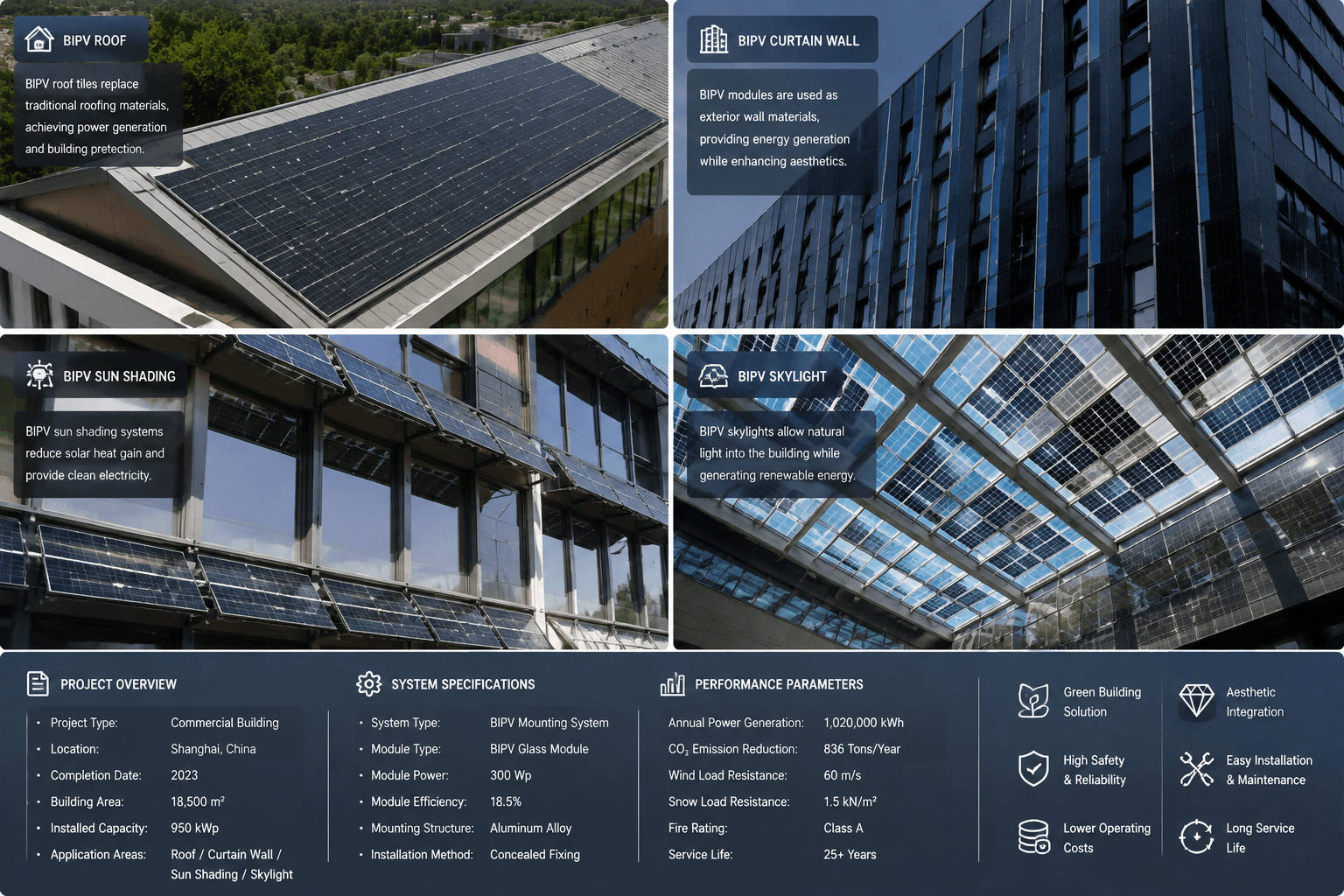

Global Projects - BIPV Mounting System Trusted Performance Worldwide

Reliable Manufacturing. Proven Quality. Global Trust.

Over 10 years of expertise in solar mounting systems, delivering certified quality and professional service to 50+ countries.

Factory Production

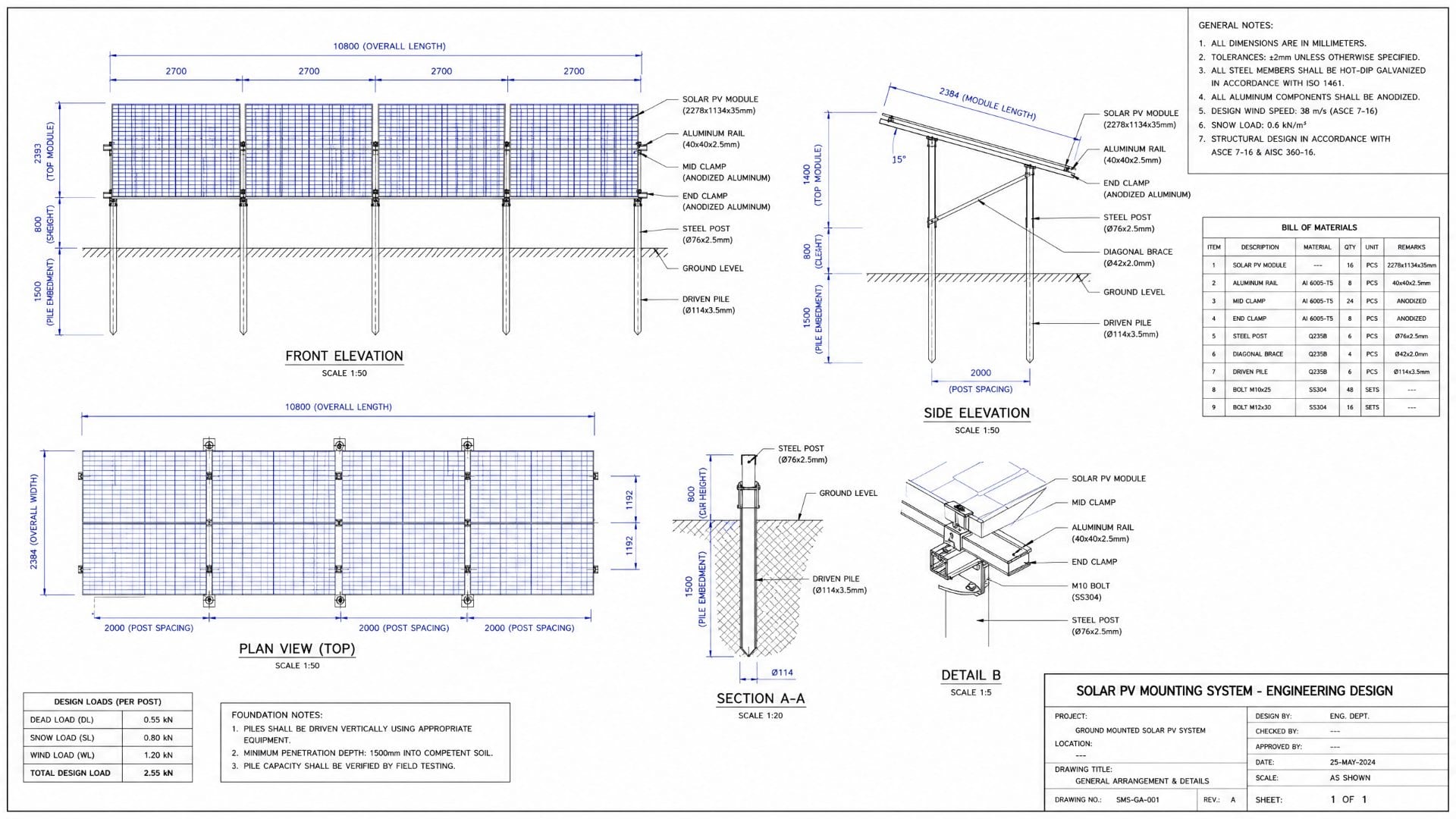

Engineering Design

Quality Inspection

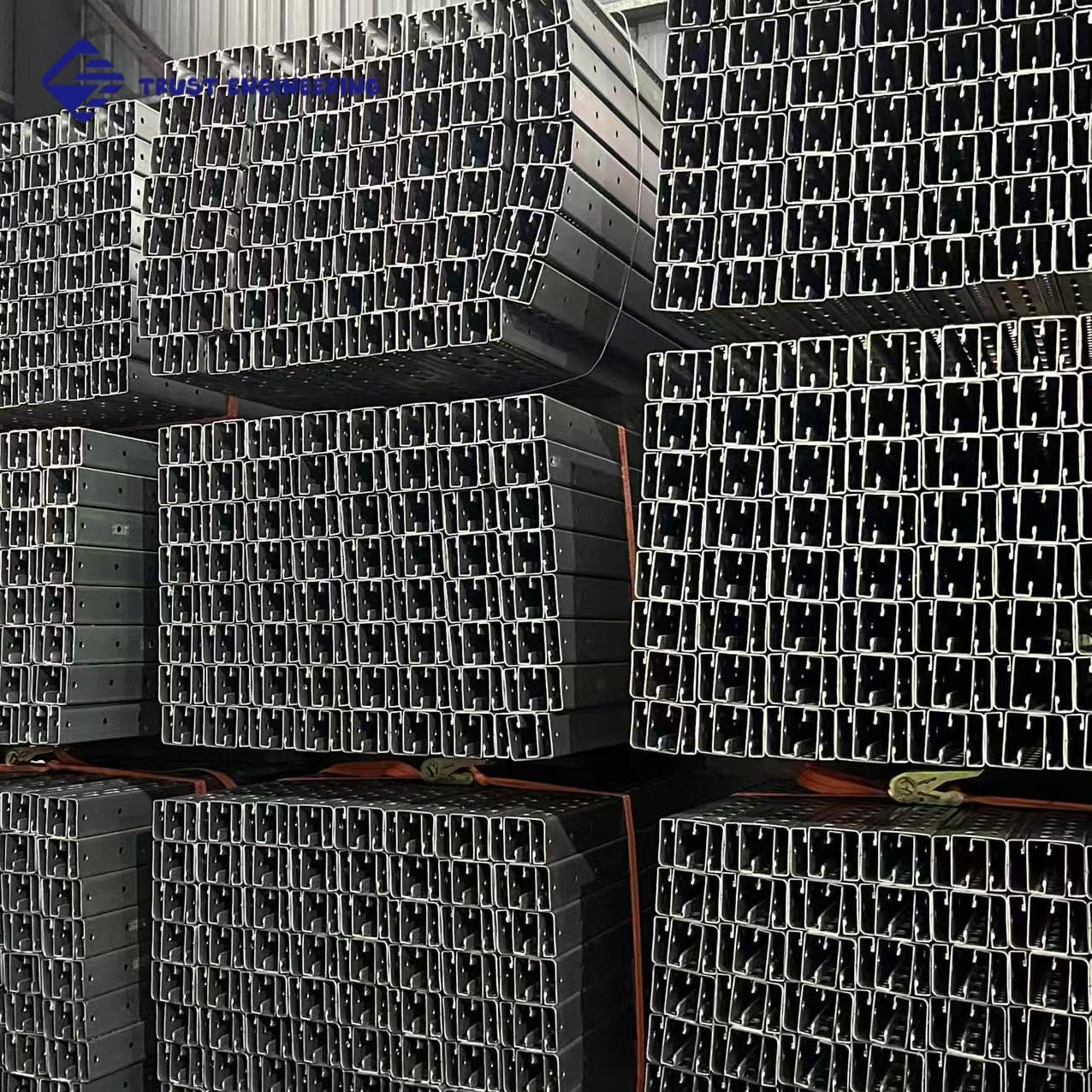

Global Projects

Frequently Asked Questions

What is a BIPV mounting system?▼

BIPV (Building-Integrated Photovoltaics) replaces conventional roofing or facade materials with solar-generating elements. Our mounting system integrates these panels into the building envelope while ensuring waterproofing and structural safety.

Is the BIPV system fully waterproof?▼

Yes. The system is engineered with overlapping joints, sealing gaskets, and drainage channels to provide 100% waterproof protection, replacing the need for separate roofing material.

What building types are suitable?▼

BIPV is ideal for industrial roofs, commercial buildings, warehouses, solar carports, facades, skylights, and atriums. Each project is customized to architectural and energy requirements.

Can the panels be transparent or colored?▼

Yes. We offer mono, thin-film, and semi-transparent PV panels with customized dimensions, colors, and transparency levels (10%–50%) to match your design intent.

Do you provide OEM and project customization?▼

Yes. OEM and ODM services are available, including panel size, frame finish, waterproof detailing, structural calculations, logo, and packaging tailored to your project.

BIPV Mounting System

Technical Specifications

GLOBAL PROJECTS, TRUSTED PERFORMANCE

Reliable Manufacturing. Proven Quality. Global Trust.

Factory Production

Engineering Design

Quality Inspection

Global Projects

Frequently Asked Questions

Planning a BIPV Project?
