Tile Roof Solar Mounting System

Trust Engineering Tile Roof Solar Mounting System is designed for installing photovoltaic modules on pitched tile roofs — including flat tile, curved tile, and slate. Featuring non-penetrating aluminum roof hooks and tile replacement hooks that protect roof waterproofing while delivering a secure, long-lasting hold.

⚒AL6005-T5 Anodized 💧No Roof Damage 🌪60 m/s Wind Rated 💻25-Year Life

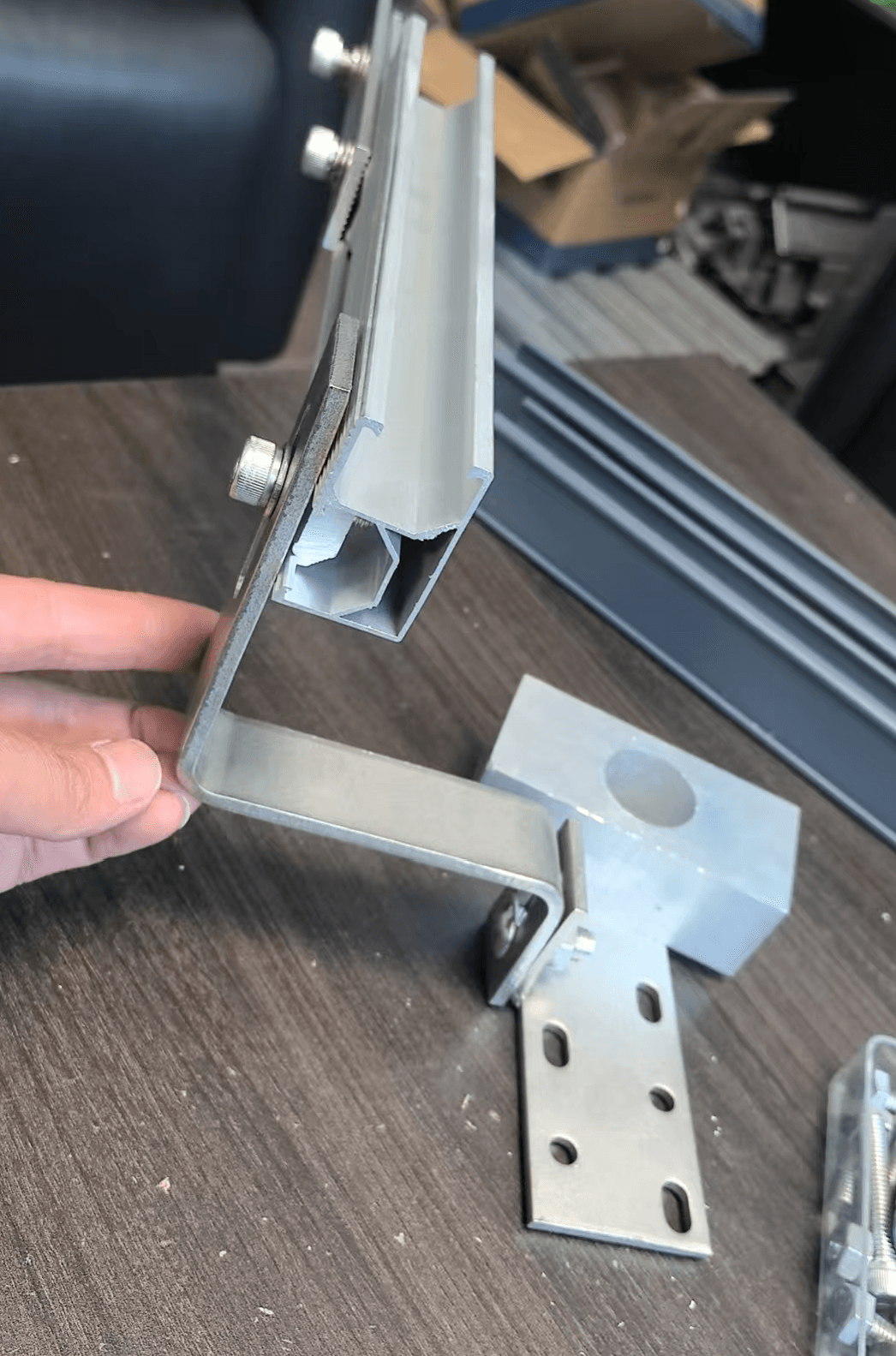

Tile roof solar mounting system installed on pitched tile roof

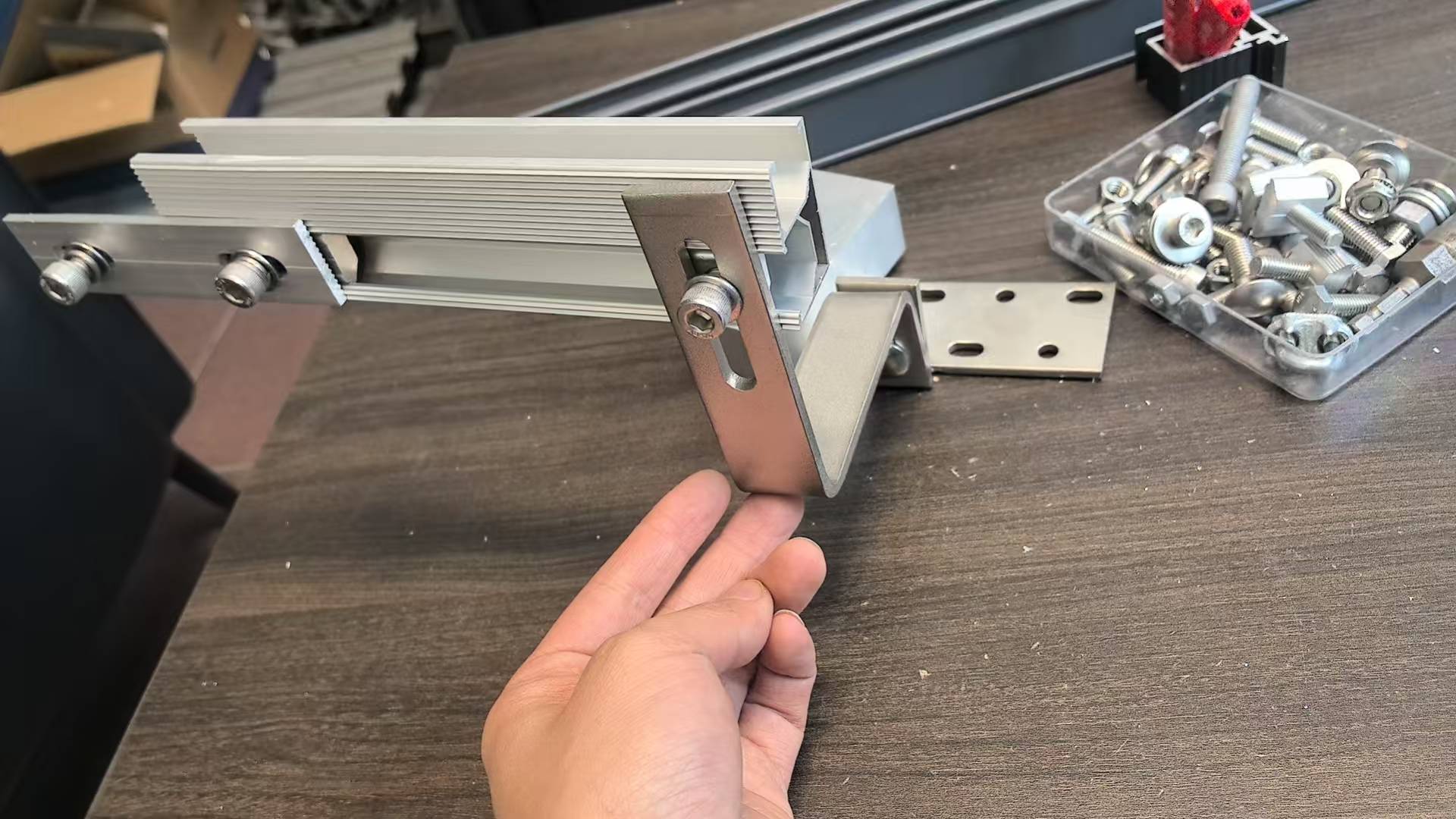

Solar panels mounted on residential tile roof

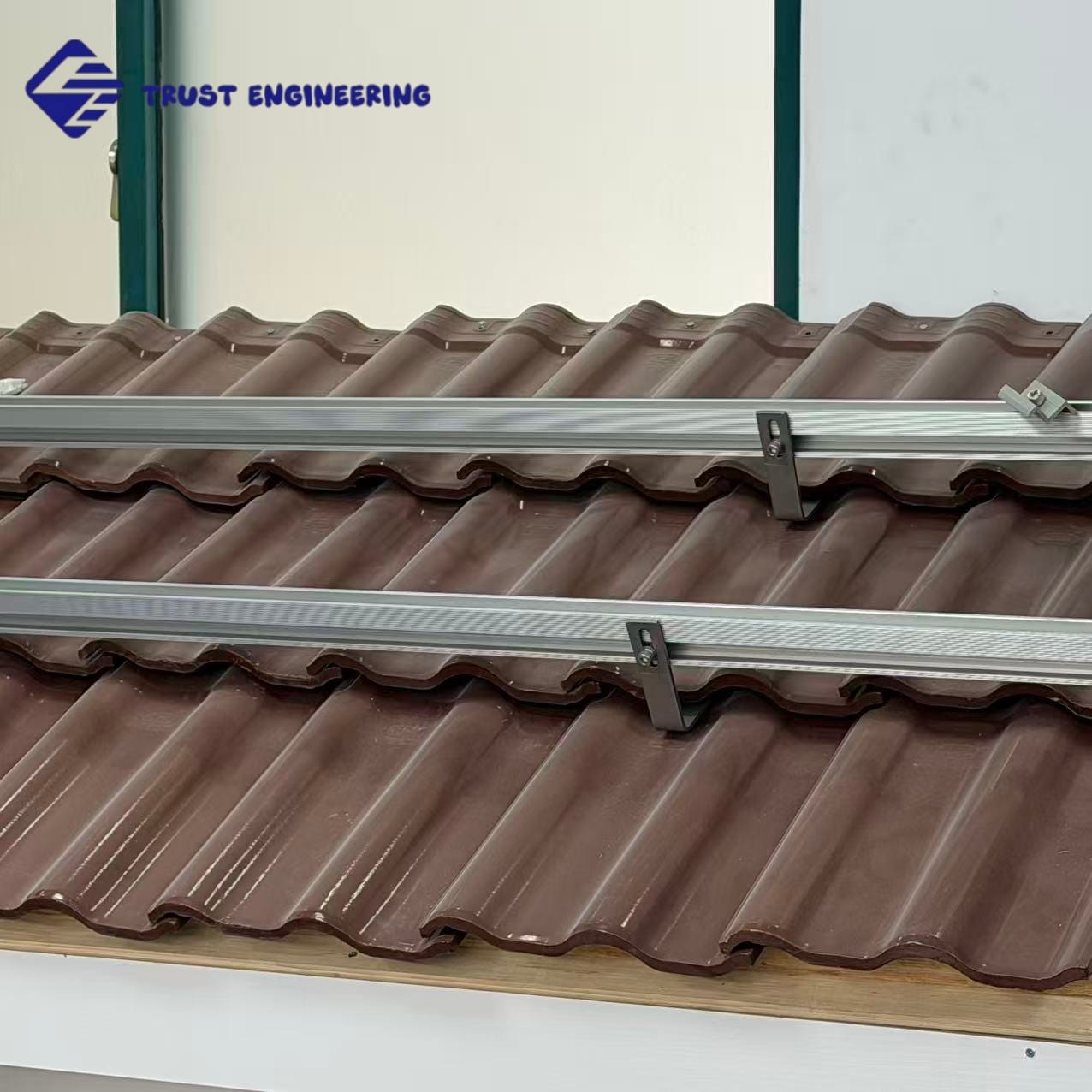

Tile roof solar mounting bracket hardware

Technical Specifications

Detailed parameters for the Tile Roof Solar Mounting System — basic information and mechanical performance.

Basic Information

Product Name

Tile Roof Solar Mounting System

Application

Pitched Tile Roof

Installation Type

Roof Mounting

Suitable Modules

Framed Solar Panels

Module Orientation

Portrait / Landscape

Installation Angle

Roof Parallel / Custom Tilt

Roof Type

Flat Tile / Curved Tile / Slate

Material

AL6005-T5 Aluminum Alloy

Fasteners

SUS304 Stainless Steel

Surface Treatment

Anodized Aluminum (10-15μm)

Color

Silver / Customized

Warranty

10 Years

Service Life

25+ Years

Mechanical Parameters

Wind Load

Up to 60 m/s

Snow Load

Up to 1.5 – 2.0 kN/m²

Module Thickness

30 – 40 mm (customizable)

Roof Pitch

10° – 60°

Corrosion

Anodized Alu + SUS304

Temperature

–40°C to +85°C

GLOBAL PROJECTS, TRUSTED PERFORMANCE

Tile Roof Solar Mounting System | Trusted Performance on Pitched Rooftops Worldwide

Global Projects - Tile Roof Solar Mounting System Trusted Performance Worldwide

Reliable Manufacturing. Proven Quality. Global Trust.

Over 10 years of expertise in solar mounting systems, delivering certified quality and professional service to 50+ countries.

Factory Production

Engineering Design

Quality Inspection

Global Projects

Frequently Asked Questions

What types of tile roofs are compatible?▼

Our systems are suitable for flat tile, curved (Roman/Spanish) tile, and slate roofs, with dedicated hook solutions for each profile.

Will the installation damage my roof?▼

Our roof hooks and tile replacement hooks are designed to be non-penetrating and protect roof waterproofing. Existing tiles are reused or replaced without cutting.

Can the system withstand strong wind?▼

Yes. The structure can be designed according to local wind speed requirements. Our standard rating is up to 60 m/s.

What materials are used?▼

Main components use AL6005-T5 aluminum alloy with SUS304 stainless steel fasteners and EPDM waterproof gaskets.

Do you provide OEM service?▼

Yes. OEM and ODM services are available, including logo, packaging, and customized product design.
