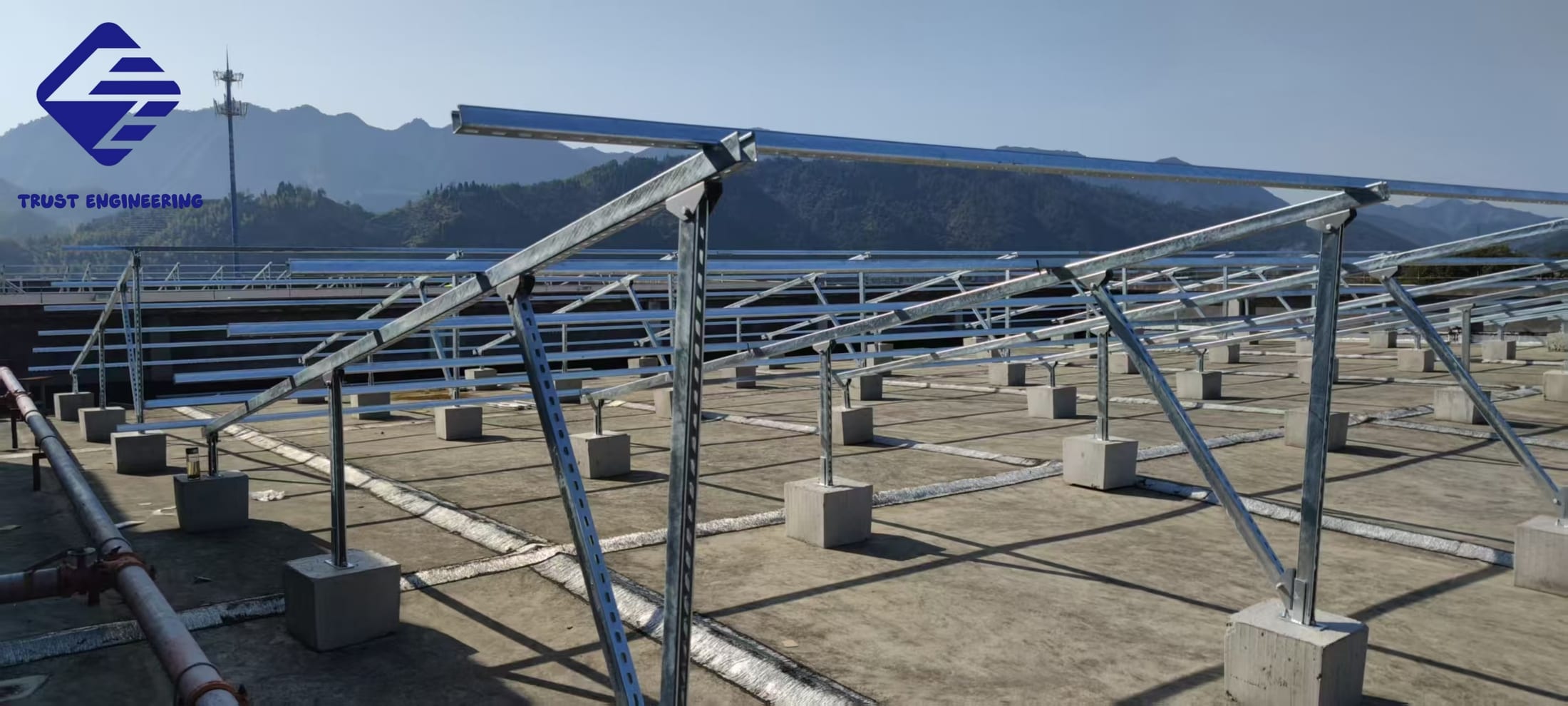

Heavy-duty hot-dip galvanized steel ground-mount for utility-scale solar farms. Maximum load capacity, wind resilience, and cost-effectiveness for large-scale deployments.
Engineered parameters for utility-scale and commercial PV projects. Custom configurations available on request.
| Product Name | Steel Ground Mounting System |
|---|---|
| Installation Site | Open Ground |
| Application | Utility-scale / Commercial PV Projects |
| Foundation Type | Ground Screw / Concrete Foundation / Driven Pile |
| Module Orientation | Portrait / Landscape |
| Tilt Angle | 5°–45° (Customized) |
| Wind Load | Up to 60 m/s (confirmed per project specs) |
| Snow Load | Up to 1.8–2.0 kN/m² |
| Main Material | Q235B / Q355B Carbon Steel |
| Surface Treatment | Hot-Dip Galvanized (HDG) / ZAM |
| Galvanizing Thickness | Typically 65–85 μm (per ISO 1461) |
| Fasteners | SUS304 Stainless Steel |
| Color | Natural Galvanized Finish |
| Design Standard | AS/NZS 1170 / Eurocode / JIS C8955 / EN 1991 |
| Warranty | 10 Years |
| Design Service Life | 25+ Years |
Steel Ground Mounting System | Built for Extreme Environments Worldwide

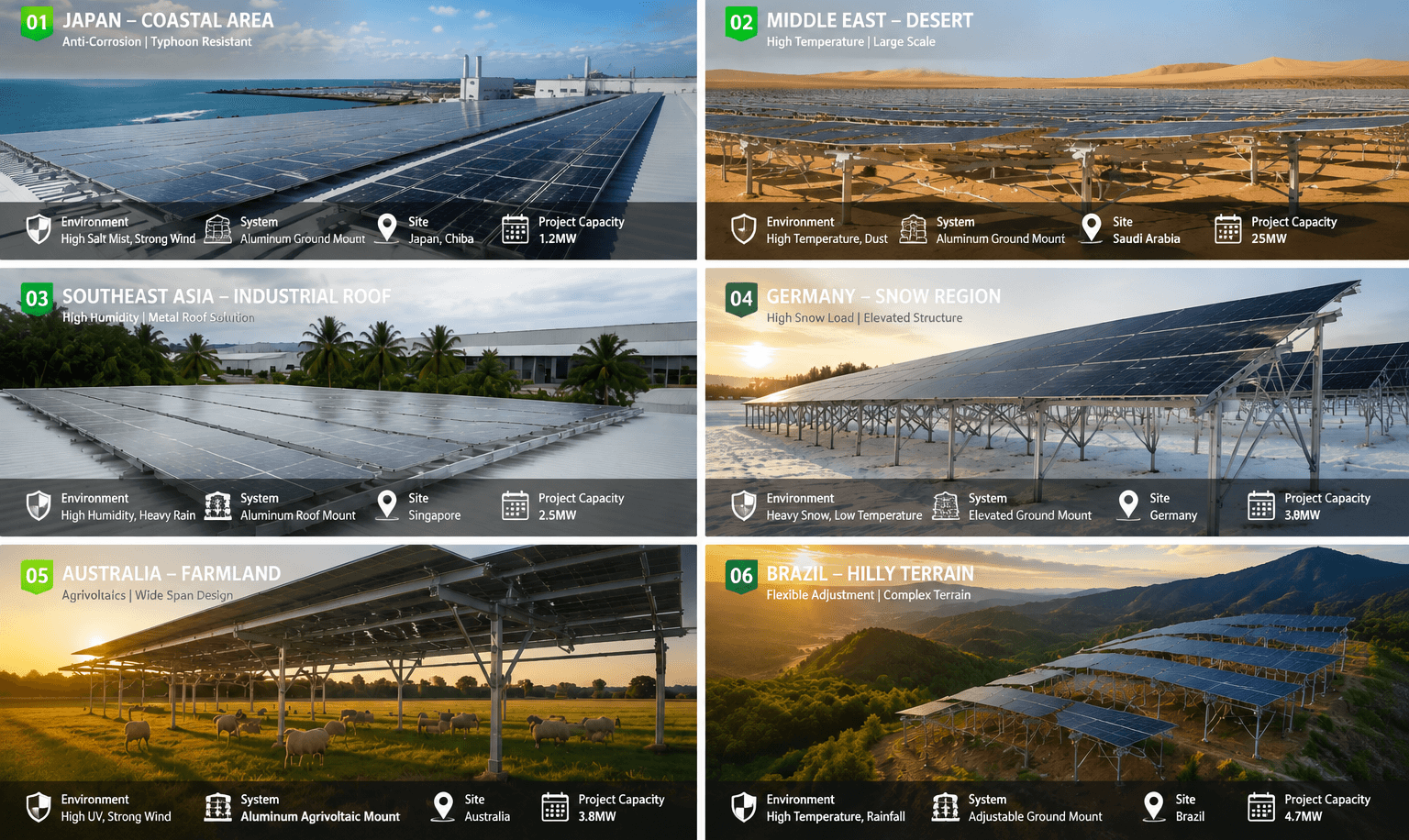

Over 10 years of expertise in solar mounting systems, delivering certified quality and professional service to 50+ countries.
