Flat Roof Solar Mounting System

Trust Engineering Flat Roof Solar Mounting System is engineered for concrete roofs and flat rooftops — featuring ballasted (non-penetrating), penetrating, and triangular A-frame solutions. Optimized tilt angles maximize energy yield while concrete blocks or chemical anchors deliver rock-solid stability.

⚒AL6005-T5 Anodized 💧Ballasted Option 🌪60 m/s Wind Rated 💻25-Year Life

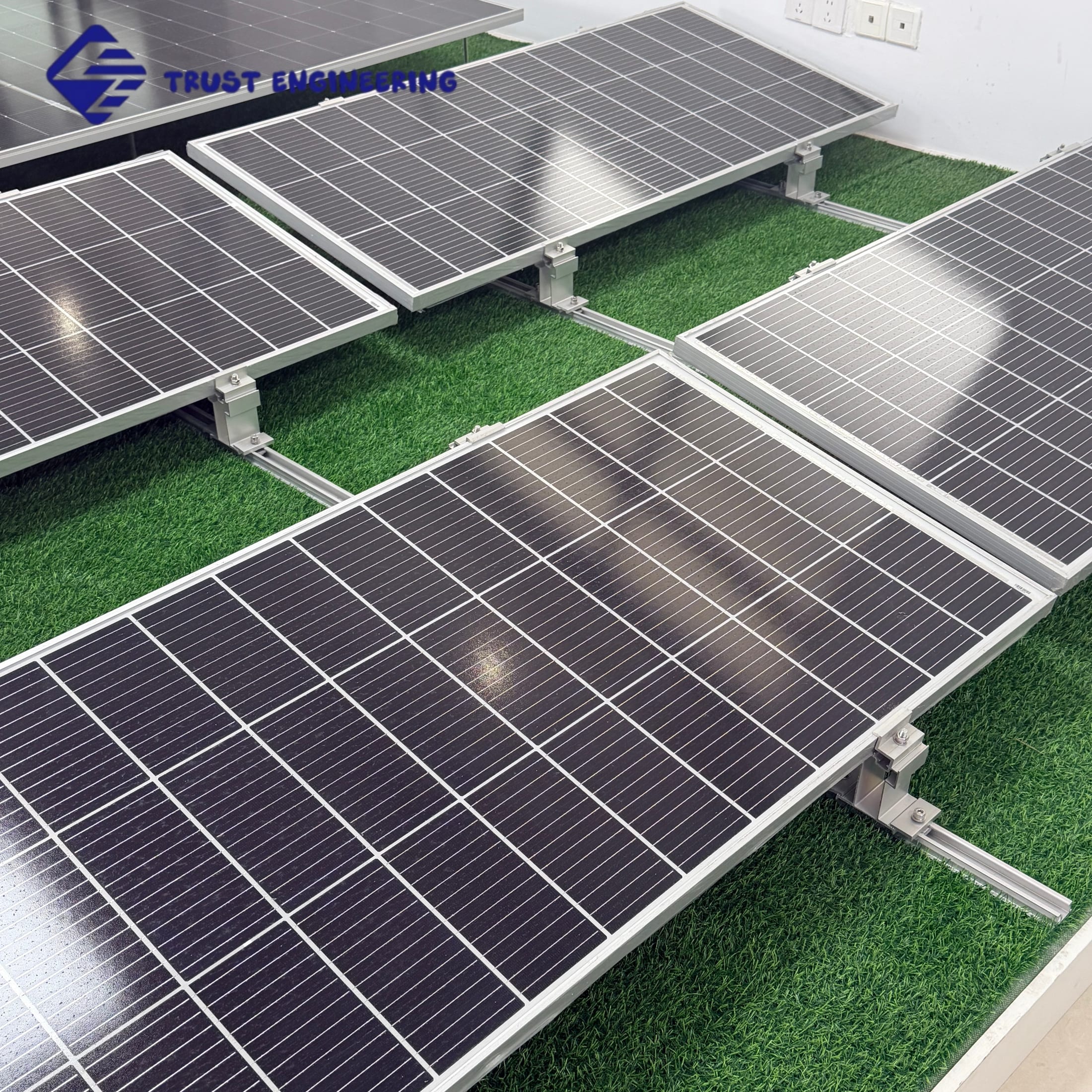

Flat roof solar mounting system on artificial grass display

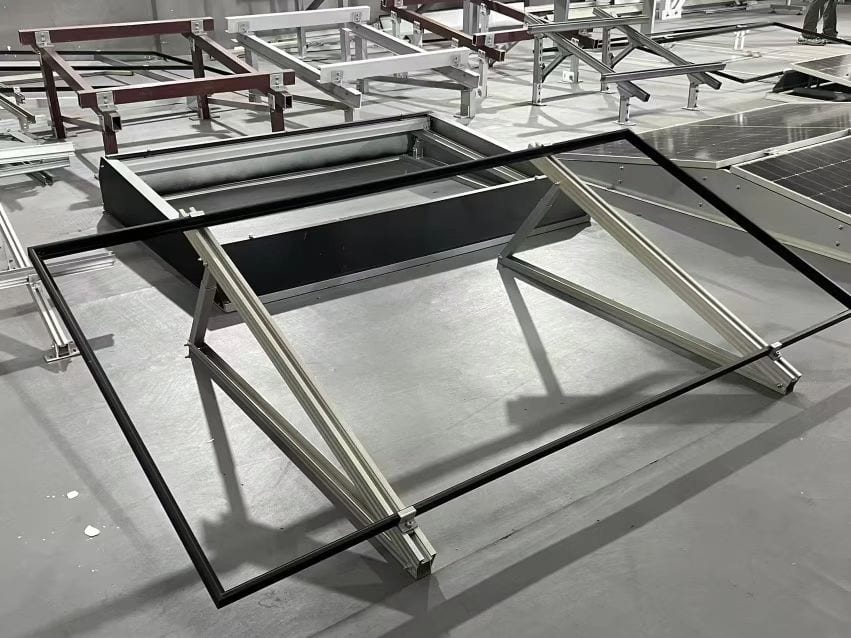

Triangular A-frame flat roof mounting structure with glass panel

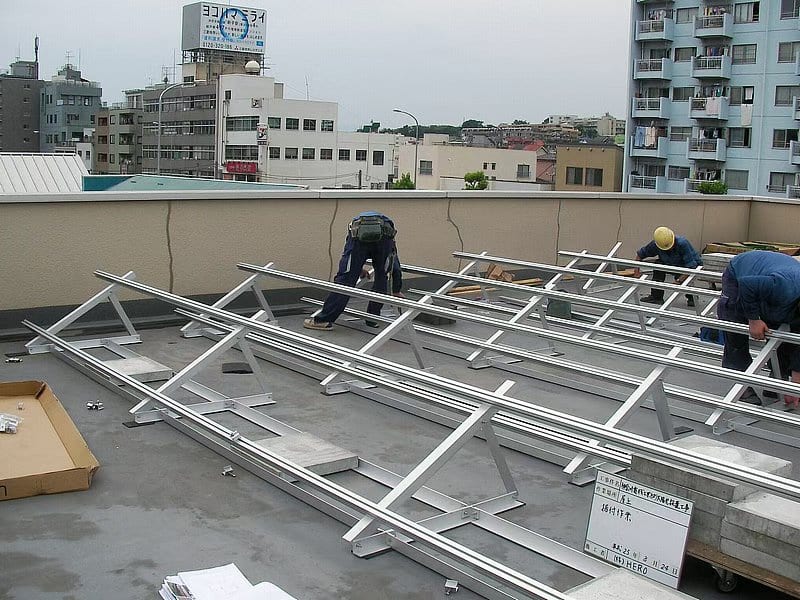

Concrete roof solar installation in progress by workers

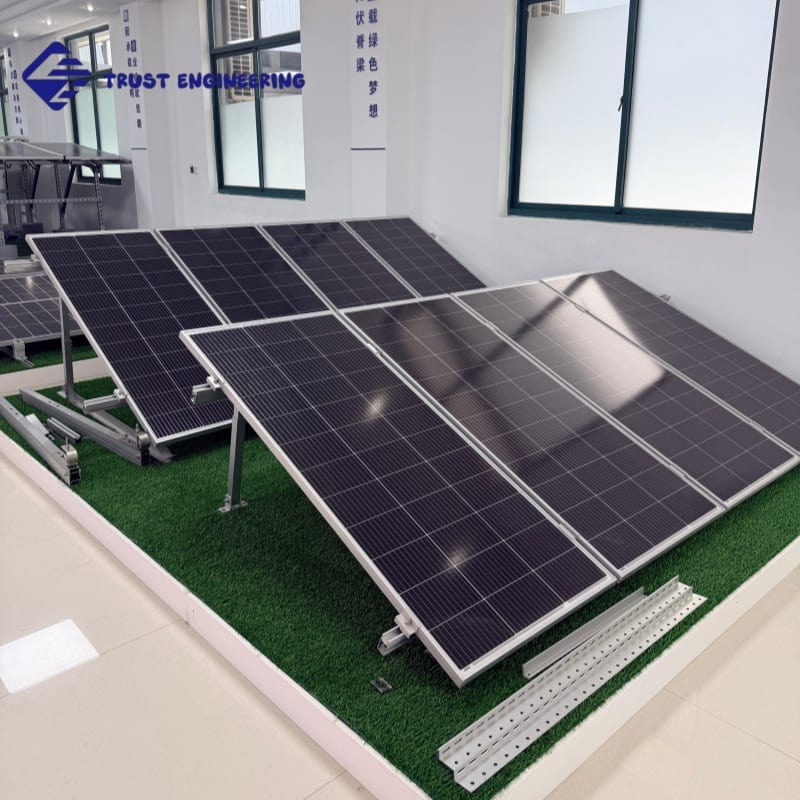

Showroom display of tilted flat roof solar mounting system

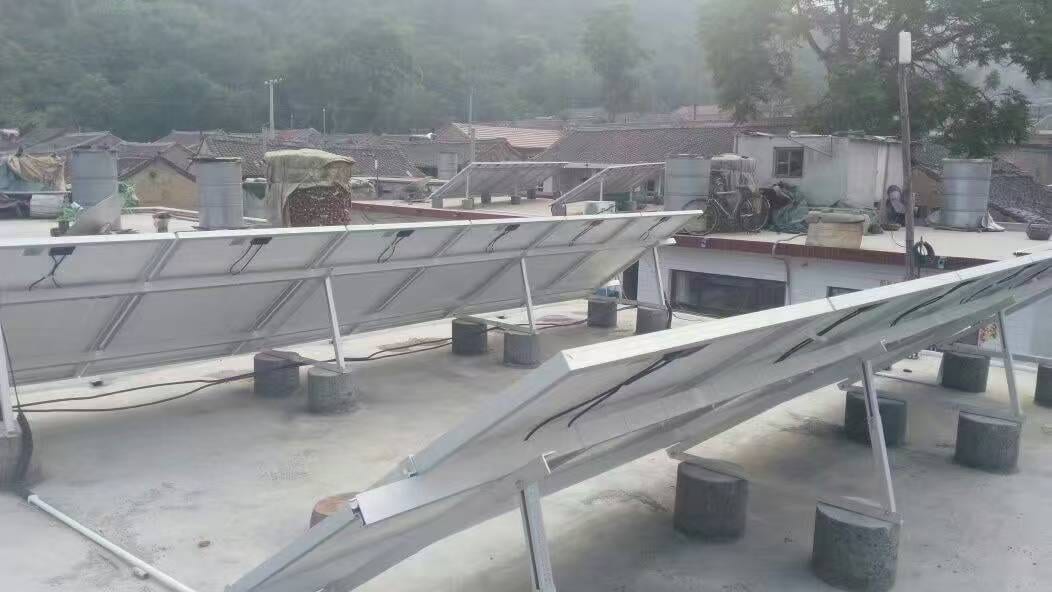

Rural concrete roof solar array with ballast blocks

Technical Specifications

Detailed parameters for the Flat Roof Solar Mounting System — basic information and mechanical performance.

Basic Information

Product Name

Flat Roof Solar Mounting System

Application

Flat Roof / Concrete Roof

Installation Type

Roof Mounting (Ballasted / Anchored)

Suitable Modules

Framed Solar Panels

Module Orientation

Portrait / Landscape

Tilt Angle

10° – 30° (Customizable)

Mounting Method

Ballasted / Chemical Anchor / Mechanical

Material

AL6005-T5 Aluminum Alloy

Fasteners

SUS304 Stainless Steel

Surface Treatment

Anodized Aluminum (10-15μm)

Color

Silver / Customized

Warranty

10 Years

Service Life

25+ Years

Mechanical Parameters

Wind Load

Up to 60 m/s

Snow Load

Up to 1.5 – 2.0 kN/m²

Ballast Weight

Custom per project (typical 40–80 kg/block)

Frame Spacing

Customizable (standard 1200–1600 mm)

Corrosion

Anodized Alu + SUS304

Temperature

–40°C to +85°C

GLOBAL PROJECTS, TRUSTED PERFORMANCE

Flat Roof Solar Mounting System | Trusted Performance on Rooftops Worldwide

Global Projects - Flat Roof Solar Mounting System Trusted Performance Worldwide

Reliable Manufacturing. Proven Quality. Global Trust.

Over 10 years of expertise in solar mounting systems, delivering certified quality and professional service to 50+ countries.

Factory Production

Engineering Design

Quality Inspection

Global Projects

Frequently Asked Questions

What types of flat roofs are compatible?▼

Our systems are suitable for membrane, concrete, and steel-deck flat roofs, with ballasted and anchored solutions for each structure type.

Do I need to penetrate the roof?▼

The ballasted system is fully non-penetrating and protects the waterproof membrane. Chemical or mechanical anchors are available where higher wind/snow resistance is required.

What tilt angle is available?▼

Standard tilt angles range from 10° to 30° and can be customized to optimize energy yield for your local latitude and project requirements.

How much ballast is needed?▼

Ballast weight is calculated per project based on local wind and snow loads. Typical concrete blocks weigh 40–80 kg each.

Do you provide OEM service?▼

Yes. OEM and ODM services are available, including customized tilt angle, rail length, ballast weight, logo, and packaging.
